Name: P6 Outdoor Full Color LED Display Screen SMD 3535 6500cd/sqm
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P6
Price: 400.00 USD
Availability: InStock

Nhà Sản phẩm Quảng cáo Quảng cáo ngoài trời

P6 Outdoor Full Color LED Display Screen SMD 3535 6500cd/sqm

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Đông, Trung Quốc
Hàng hiệu:	KAILITE
Số mô hình:	P6

Thanh toán:

Số lượng đặt hàng tối thiểu:	2

Tiếp xúc

Chi tiết sản phẩm

Pixel sân:	6 mm	Kích thước mô -đun:	192*192mm
Mật độ vật lý:	27777 chấm/m2	Cấu hình pixel:	1R1G1B
Chip LED:	SMD3535	Độ phân giải mô -đun:	32*32
mô-đun điện:	35W	xem góc:	H: 120 °; V: 120 °
Khoảng cách tối ưu:	6-70m	Công suất tối đa:	900W
Kích thước tủ:	W: 960mm*H: 960mm	Độ phân giải nội các:	96*96
Phương pháp lái xe:	Quét 1/4 hiện tại không đổi	Tần số khung:	≥60Hz
Làm mới tần số:	≥1200Hz
Làm nổi bật:	P6 outdoor LED display screen , SMD 3535 LED display , 6500cd/sqm outdoor LED screen

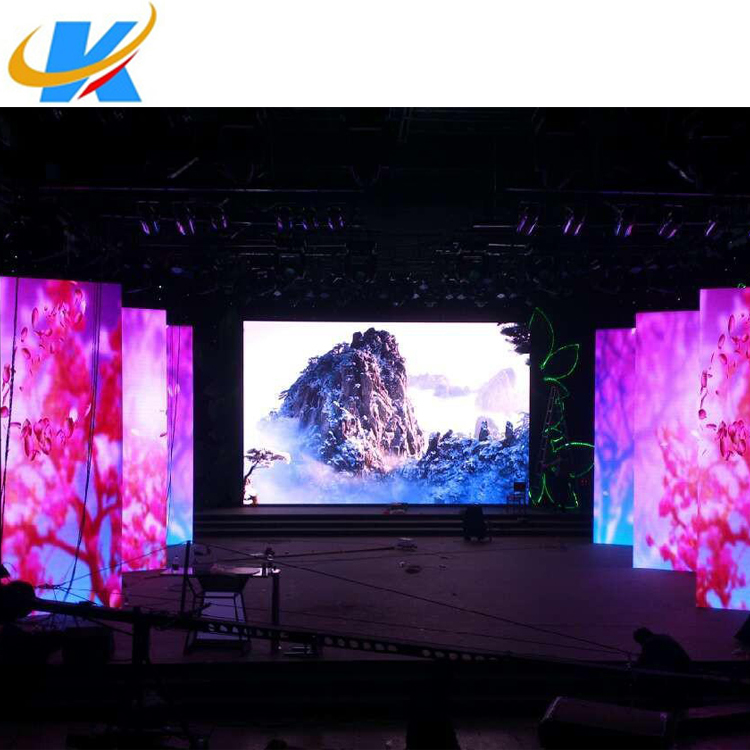

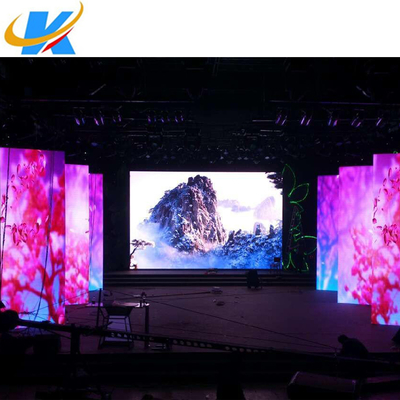

Stage Background Die Casting Aluminum P6 Full Color Outdoor LED Display Screen for Concert

Product Attributes

Attribute	Value
Use	Outdoor
Tube Chip Color	FULL COLOR
Display Function	Video
Pixels	6mm
Screen Dimension	Customized Size
Product Name	Factory direct led tv full color smd screen sign outdoor p6
Brightness	6500cd/sqm
Application	Outdoor
LED Chip	SMD 3535
Module Size	192*192mm
Certificate	CE RoHS FCC Certifications
Viewing Angle	H120° V120°
Life Span	100000 hours
Warranty	2 years
Driving Method	1/8 Scan Constant Current

Product Description

LED technology has revolutionized visual displays worldwide. As a premier application of this technology, our LED screens deliver exceptional visual and auditory experiences, transforming events into vibrant spectacles.

SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD specializes in manufacturing high-quality LED displays. We provide complete, customized LED screen solutions at competitive prices with guaranteed quality.

Key Features

Customized solutions tailored to your specific requirements
Factory-direct pricing with superior quality
Quick and easy installation with simple maintenance
2-year comprehensive warranty

Technical Specifications

Item	P6
Pixel Pitch	6mm
Module Size	192*192mm
Physical Density	27777dots/sqm
Pixel Configuration	1R1G1B
LED Chip	SMD3535
Module Resolution	32*32
Module Power	35w
Viewing Angle	H:120°;V:120°
Optimal Viewing Distance	6-70m
Maximum Power	900w
Cabinet Size	W:960mm*H:960mm
Cabinet Resolution	96*96
Driving Method	Constant current 1/4 scan
Frame Frequency	≥60Hz
Refresh Frequency	≥1200Hz
Brightness	≥6500cd
Operation Temperature/Humidity	-30℃~+45℃ 10%~95%
Input Voltage	220V±10%/110V±10%
Ingress Protection	Front IP:67:Back IP:65
Gray Scale/Color	≥16.7M color
Brightness Control	Manual/Automatic
Input Signal	RF/S-Video/RFB/etc.
Control System	PCTV+DVI video card control card fiber
MTBF	>5,000hrs
Life Time	>100,000 hours
Lamp Failure Frequency	<0.0001
